Product Overview
This HYS 103450 pouch lithium polymer cell is a customized rechargeable battery independently produced by Shenzhen Huayousheng Energy Technology Co., Ltd. With standard size 103450mm, rated voltage 3.7V, capacity 1800mAh and energy 6.66Wh, it is equipped with built-in BMS protection circuit, red & black wire leads and JST PH connector for easy installation.
Core Advantages
1. Stable Discharge Performance
Uniform internal resistance, stable continuous discharge, no voltage drop under medium load, suitable for long-time low-power equipment operation.
2. Complete Safety Protection
Built-in overcharge, over-discharge, over-current and short-circuit protection board, effectively avoid swelling, heating and burning risks.
3. Customizable Design
Support wire length adjustment, connector replacement (PH/XH/MOLEX), printed logo, blister packaging and different harness schemes as clients’ requirements.
4. Global Export Compliance
Pass UN38.3, IEC62133, RoHS certification; complete MSDS, test reports and shipping documents are provided for sea & air freight clearance.
Wide Application Scenarios
Induction sensor lamps, wireless Bluetooth speakers, portable teaching voice amplifiers, smart wearable devices, mini monitoring cameras, massager, small medical portable equipment and other consumer electronics.
Standard Specifications.
Item Parameter
Model HYS 103450
Nominal Voltage 3.7V
Rated Capacity 1800mAh
Energy 6.66Wh
Dimension 10mm(T) × 34mm(W) × 50mm(L)
Charging Cut-off Voltage 4.2V
Discharge Cut-off Voltage 2.75V
Configuration Built-in BMS + Red/Black Wire + PH Connector
Cycle Life ≥500 cycles (80% remaining capacity)
Service Support
• Sample orders are acceptable for performance testing
• OEM & ODM customization on size, wire, connector and packaging
• Bulk stable supply, fast production lead time 7-15 working days
• Professional after-sales engineering technical support
|
|

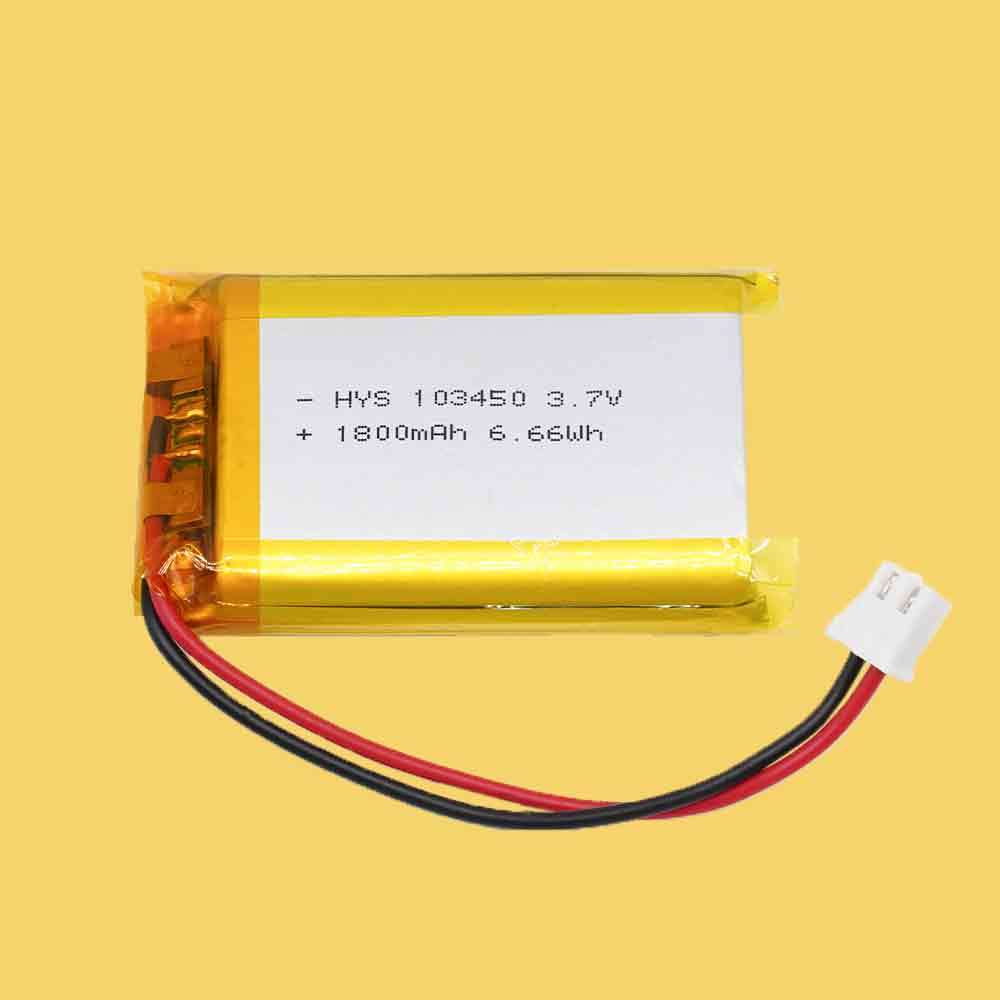

HYS 103450 3.7V 1800mAh Lithium Polymer Battery Images
|
